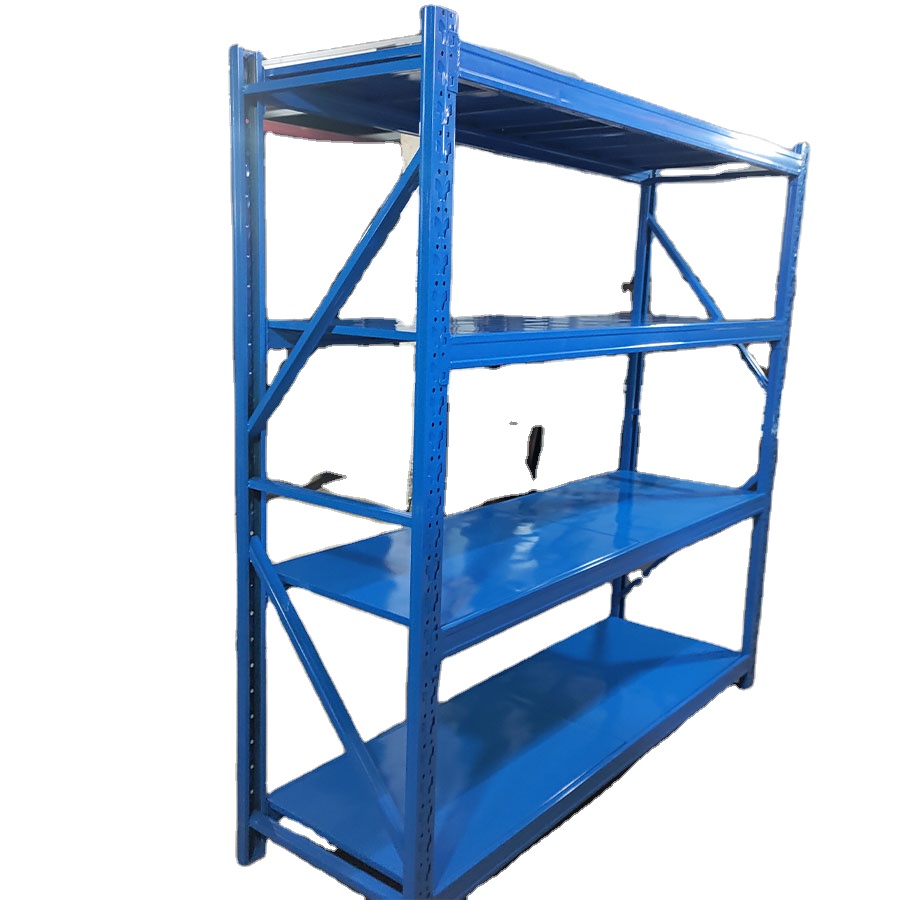

EcosystemRack
1 / 5
| Load capacity | 300KG / Layer |
| Layers | Standard is 4 layers (can be custom made) |
| Colour | Gray white / Sand blue / Customizable |
| Specifications | Length: 2000 mm Width: 450/600 mm Height: 2000 mm |
| Load (KG) | Laminate thickness | Column specification | Crossbeam specifications |
|---|---|---|---|
| 100KG | 0.30 mm | 50*25*0.5 mm | 50*30*0.5 mm |
| 200KG | 0.35 mm | 70*35*0.7 mm | 60*35*0.6 mm |
| 300KG | 0.50 mm | 60*30*1.0 mm | 70*33*1.0 mm |
| 600KG | 0.50 mm | 70*33*1.4 mm | 70*35*1.2 mm |
