| Model: RD-33# (300KG) Specifications | |
|---|---|

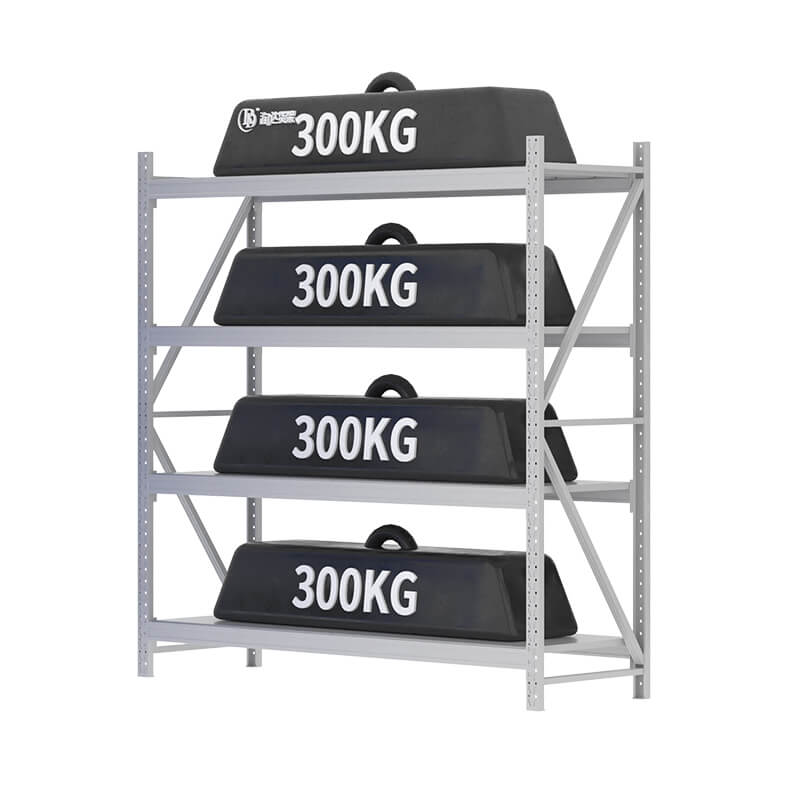

| Load Capacity | 300KG / Layer |
| Layers | Standard is 4 layers (can be custom made) |
| Colour | Gray white / Sand blue / Customizable |
| Specifications | Length: 2000 mm | Width: 600 mm | Height: 2000 mm |
| Features | Removable shelves reduce the packaging volume while maintaining the same load-bearing capacity, saving a lot of transportation costs and improving product competitiveness. |
| 40HQ Capacity | A 40HQ high container can accommodate 425 sets of 200kg shelves. With a carefully designed structure, it is possible to reduce the packaging volume by 40% while maintaining the same load-bearing capacity. |
| Load / KG | Laminate Thickness | Column Specification | Crossbeam Specifications |
|---|---|---|---|
| 100KG | 0.30 mm | 50 * 25 * 0.5 mm | 50 * 30 * 0.5 mm |
| 200KG | 0.35 mm | 70 * 35 * 0.7 mm | 60 * 35 * 0.6 mm |
| 300KG | 0.50 mm | 60 * 30 * 1.0 mm | 70 * 33 * 1.0 mm |
| 600KG | 0.50 mm | 70 * 33 * 1.4 mm | 70 * 35 * 1.2 mm |
In order to have a better understanding of our product, please review the following three tips:
The standard load capacity of model RD-33# is 300KG per layer. We also support configuration customizations with load limits ranging from 100KG up to 600KG per layer to meet different warehouse demands.
Yes. While our standard specification is 2000mm (Length) * 600mm (Width) * 2000mm (Height) with 4 layers, both the dimensions and the number of layers can be customized according to your space configurations.
The carefully engineered removable structure reduces the package volume by up to 40% while preserving the original load capacity. This compact packaging design allows more sets (e.g. up to 425 sets of 200kg shelves in a 40HQ container) to fit in shipping containers, cutting down freight costs significantly.
Our standard colors include Gray White and Sand Blue. Custom colors are also available upon request to match your branding or facility layout.
We design and manufacture various storage setups including standard warehouse racks, supermarket shelving units, mezzanine systems, and mobile growing frames customized to your business goals.
Pricing is volume-based, which varies with order quantity. Please contact us with your final order quantity and shipping address to get a tailored pricing quote and freight estimate.
